Blitz Damper ZZ-R Coilover Suspension – Fairlady Z RZ34

Brand: Blitz

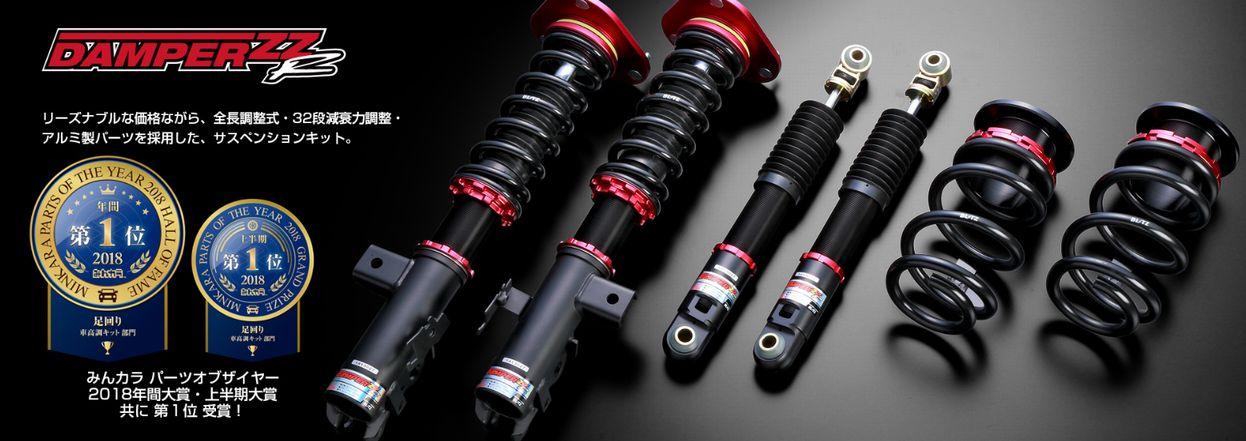

Product: Damper ZZ-R Coilover Suspension – Fairlady Z RZ34
Part Num: 92609

SPECIFICATIONS:
Materials:
– Springs: Special high-tension Steel (SAE9245)
– Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
– Front: Reinforced Rubber Upper Mount
– Rear: Reinforced Rubber Upper Mount
Spring Spec.:
– Spring Rate (kgf.mm):
— Front: 10.0
— Rear: 10.0
– Free Length (mm):
— Front: 220
— Rear: 230
Height adjustment range:
– Front: -70 ~ 0
– Rear: -40 ~ -0
Damper Adjustment Dial Extension:
– 150mm
JAN Code: 4959094926092

PRODUCT NOTES:
Option Parts:
-DSC Plus Type-A: 15236

FEATURES:
– Single Cylinder Type
– 32 stage adjustment method
– Practical use for street circuit and wide range of events
– Designed with large diameter piston at 44mm (some vehicles)

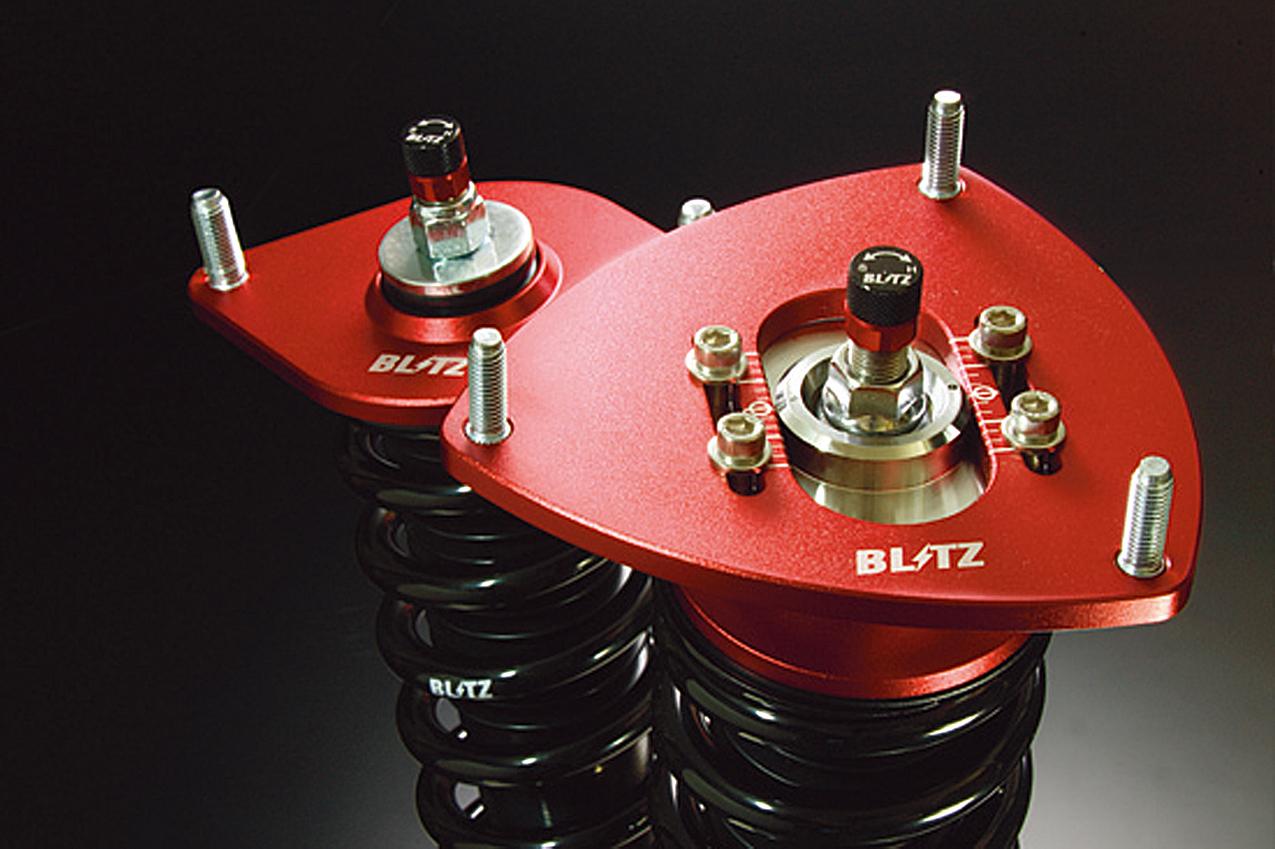

– Forged aluminum upper mount
– Forged aluminum sheet for reduced weight and increased durability and strength
– Rigid bracket coated with special pain to achieve durability
– Aluminum bracket coated in black anodized paint to improve corrosion resistance
– Included height adjustment wrench
