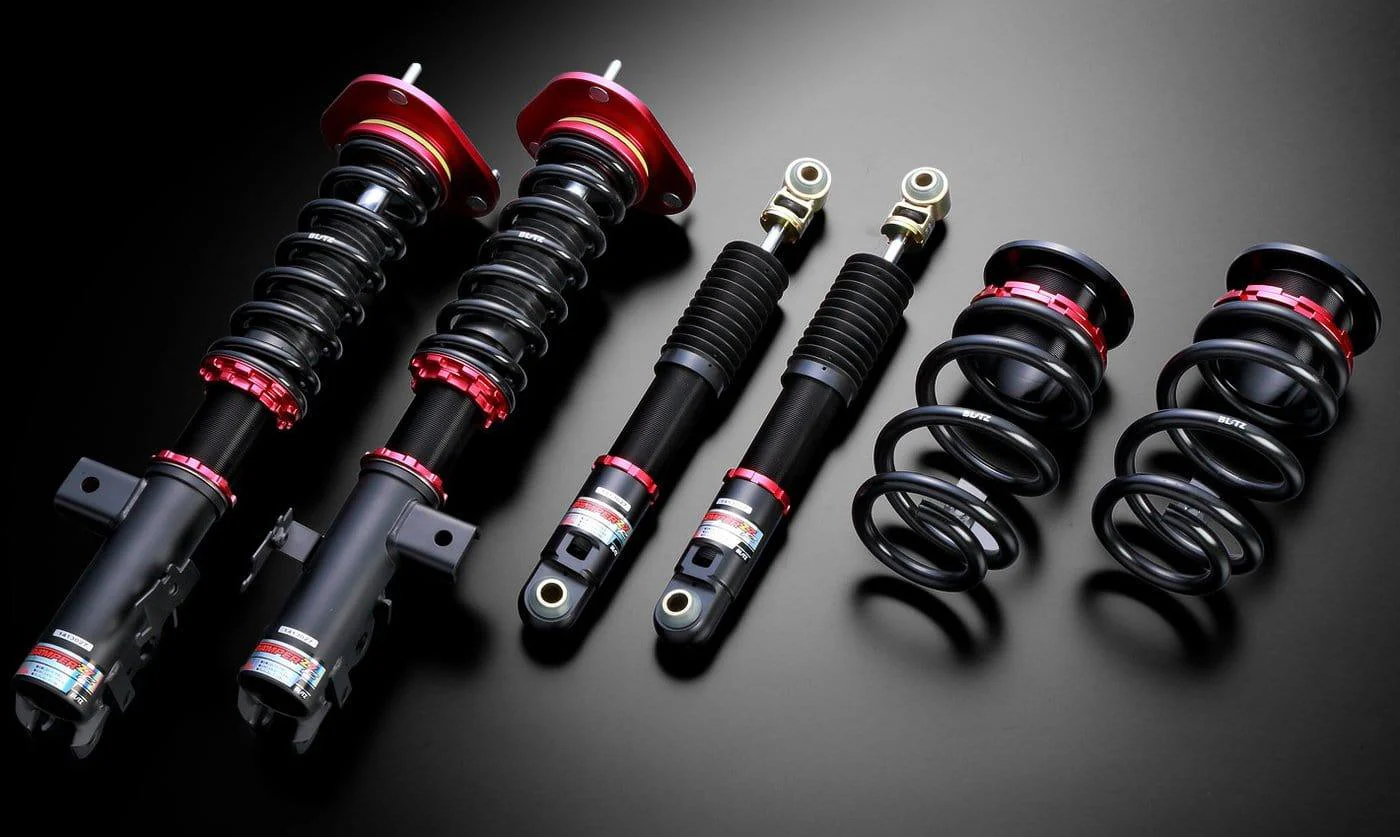

Blitz Damper ZZ-R Coilover Suspension – FD3S

Brand: Blitz
Product: Damper ZZ-R Coilover Suspension – FD3S
Part Num: 92764

SPECIFICATIONS:
Materials:
– Springs: Special high-tension Steel (SAE9245)
– Cylinder Case: High-strength Steel (STKM13C)

– FD3S –
Upper Mount Configuration:
– Front: Reinforced Rubber Upper Mount
– Rear: Reinforced Rubber Upper Mount

Spring Spec.:
– Spring Rate (kgf.mm):
— Front: 10.0
— Rear: 8.0

– Free Length (mm):
— Front: 200
— Rear: 200

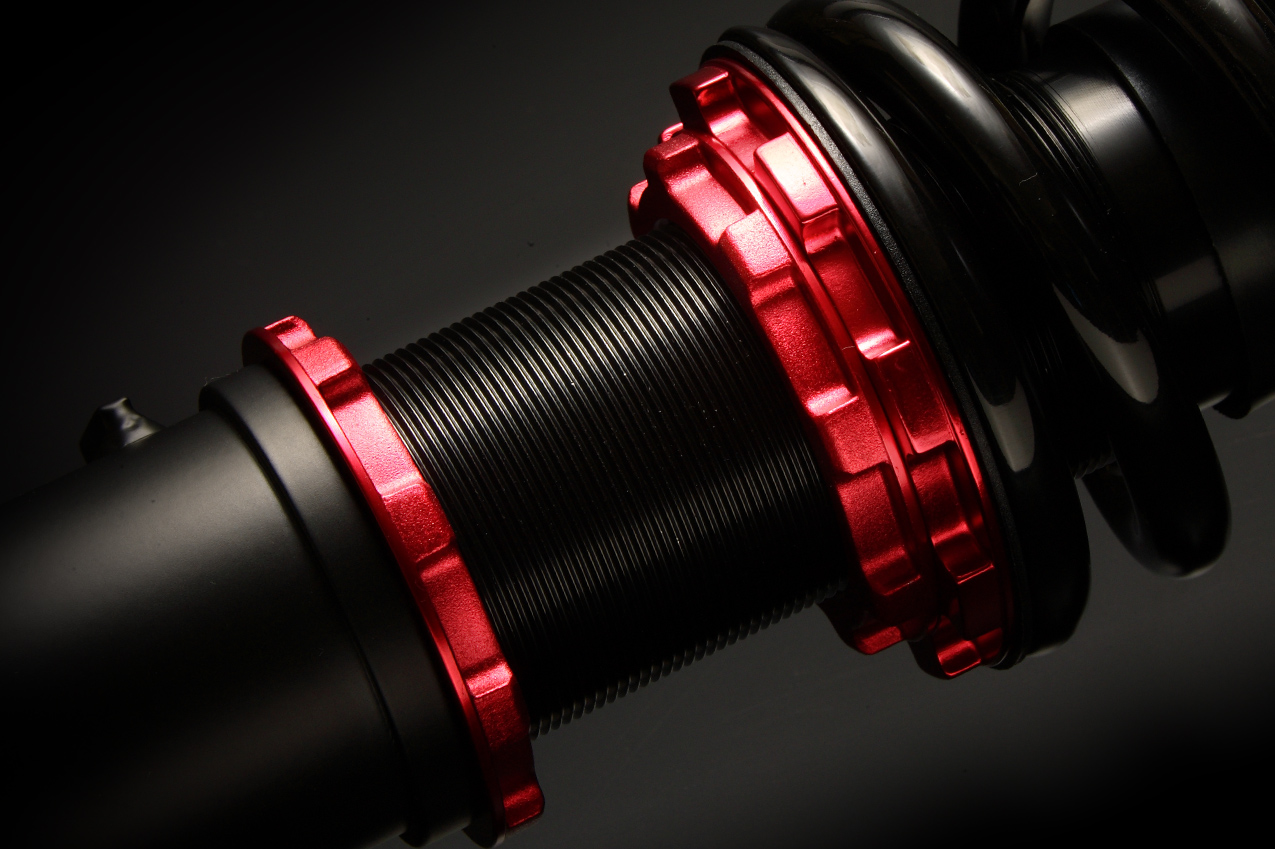

Height adjustment range:
– Front: -60 ~ +55
– Rear: -40 ~ +40

FEATURES:
– Single Cylinder Type
– 32 stage adjustment method
– Practical use for street circuit and wide range of events
– Designed with large diameter piston at 44mm (some vehicles)
– Forged aluminum upper mount
– Forged aluminum sheet for reduced weight and increased durability and strength
– Rigid bracket coated with special pain to achieve durability
– Aluminum bracket coated in black anodized paint to improve corrosion resistance
– Included height adjustment wrench
