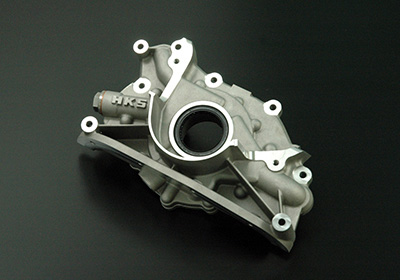

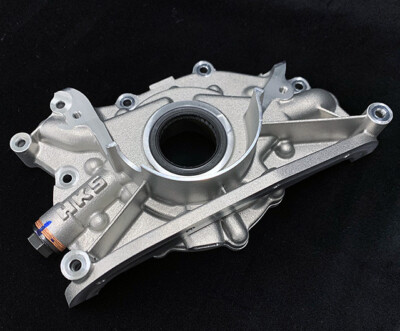

HKS Oil Pump Upgrade Kit – BNR32 BCNR33 BNR34

Brand: HKS
Product: Oil Pump Upgrade Kit – BNR32 BCNR33 BNR34
Part Num: 15003-AN001

SPECIFICATIONS:
Volume Output (L/min.) at 6000rpm:
– HKS: 65 (38% UP compare to OEM)
– OEM: 42-47
Hydraulic adjustment:
– HKS: Yes (Adjustable when installed)
– OEM: No
Material:
– HKS: Temper SCM435
– OEM: Liquefied sintered Alloy
Outer Diameter (mm):
– HKS: 88
– OEM: 81
Tooth width (mm):
– HKS: 12.4 (12% UP compare to OEM)
– OEM: 11.0
Number of teeth (mm):
– HKS: 10:11
– OEM: 12:13
Inner Thickness (mm):
– HKS: 7.4 (37% UP compare to OEM)
– OEM: 5.4
Outer Thickness (mm):
– HKS: 5.0 (11% UP compare to OEM)
– OEM: 4.5

PRODUCT NOTES:
For applications using Crank Angle Sensor Conversion (45999-AN001/45999-AN002) the modified version is recommended 15003-AN002
