Nissan Silvia S13 coilovers 180SX 240sx lowering kit

Introduction

MXR-SNA coilovers are designed as an entry level for street use. It features with full length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, improved performance for your daily use vehicle.

Application

Compatible for Nissan S13 240SX 89-94 USA
compatible for Nissan S13 200SX 89-93 Europe
compatible for Nissan S13 Silvia 88-93 Japan
compatible for Nissan S13 180SX 89-99 Japan
compatible for Nissan S13 Sileighty 98 Japan

Specification

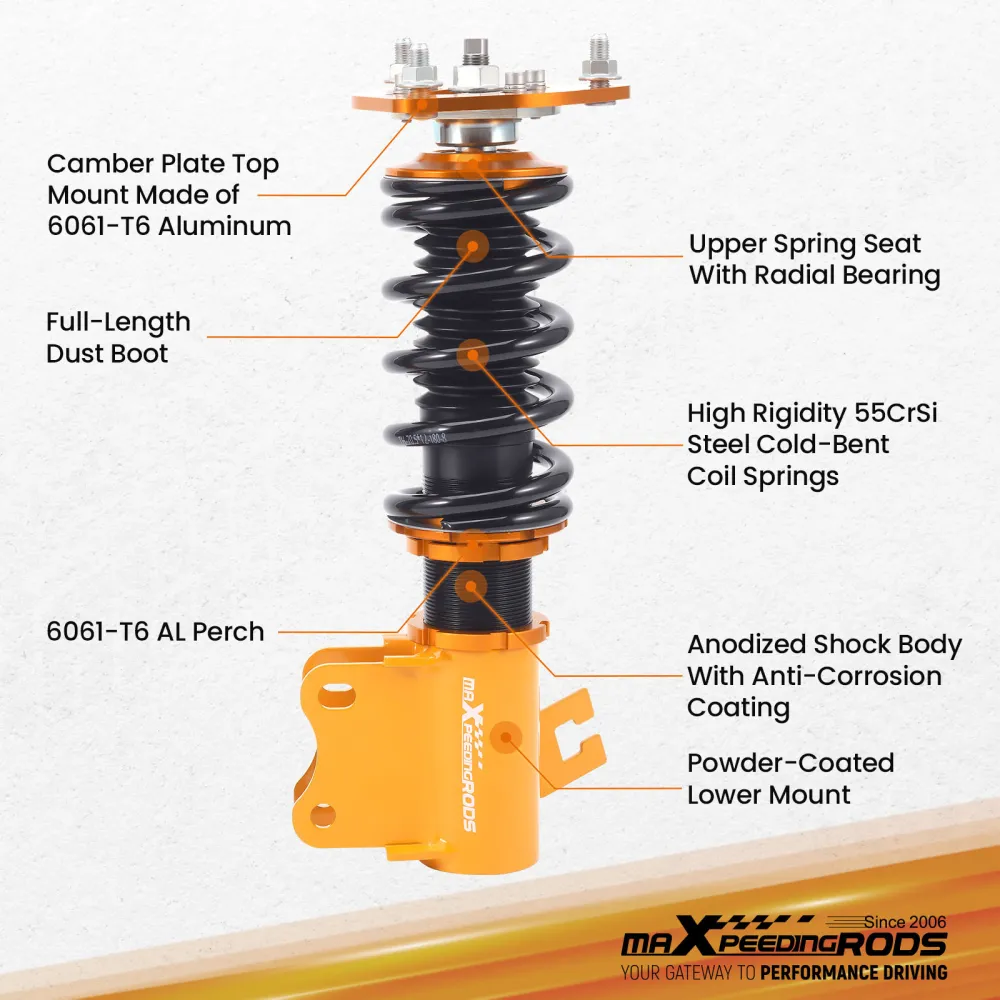

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear
Damping: No adjustable damper force

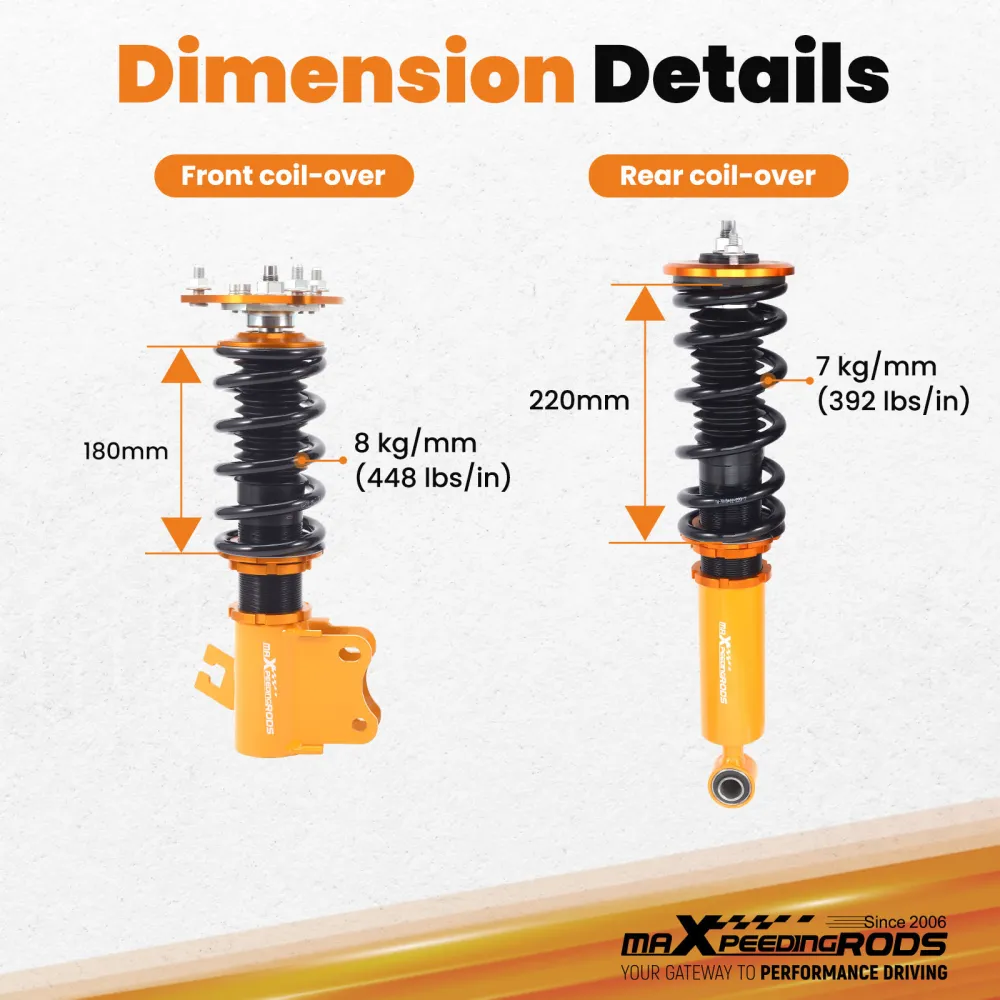

Front Spring Rate: 8kg/mm(448lbs/in)
Rear Spring Rate: 7 kg/mm (392lbs/in)
Adjustable Height: Yes lowering 1″ to 3″
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

Package included

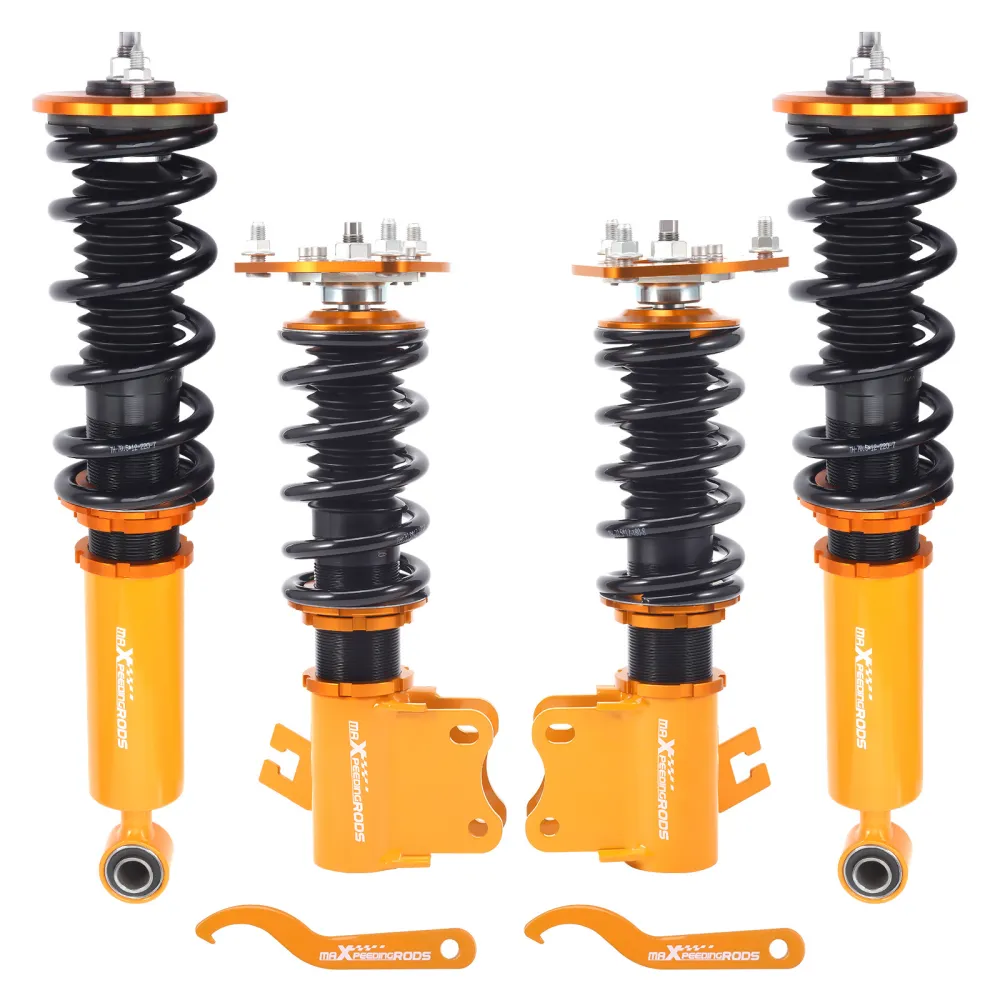

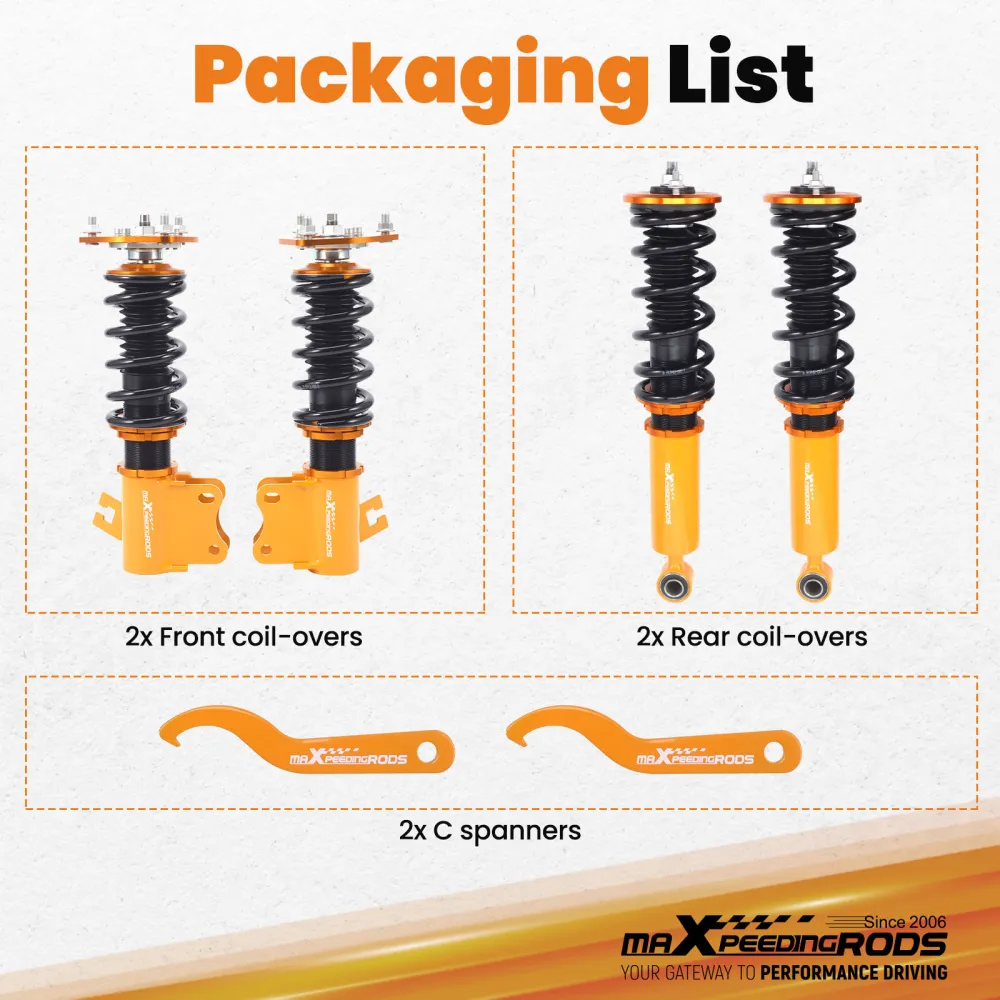

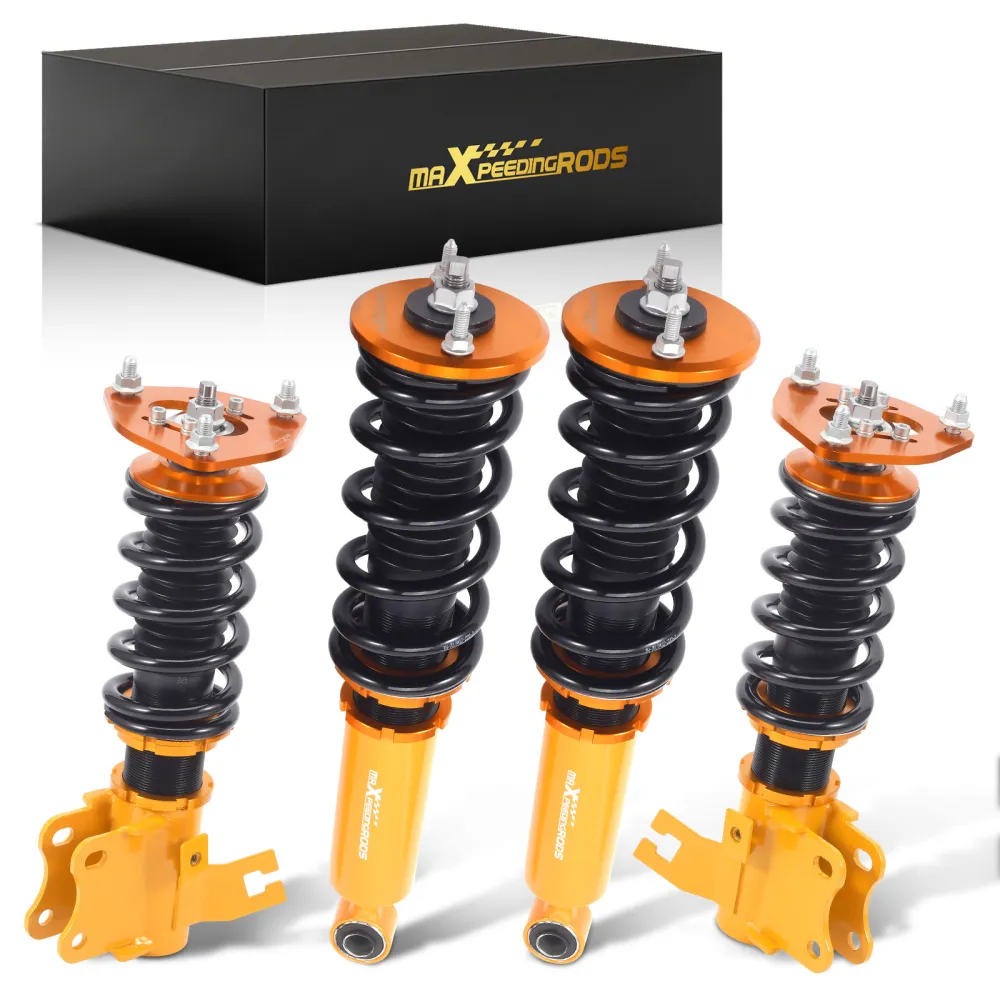

product included: complete coilovers 2 front and 2 rear, a pair wrench for height adjustment.

Dimension

Gross weight: 23.98kg
Package size: 63*51*21cm

Feature

1. Lowered height adjustment from 1″ – 3″ which allow lower center of gravity and also add a more aggressive stance.

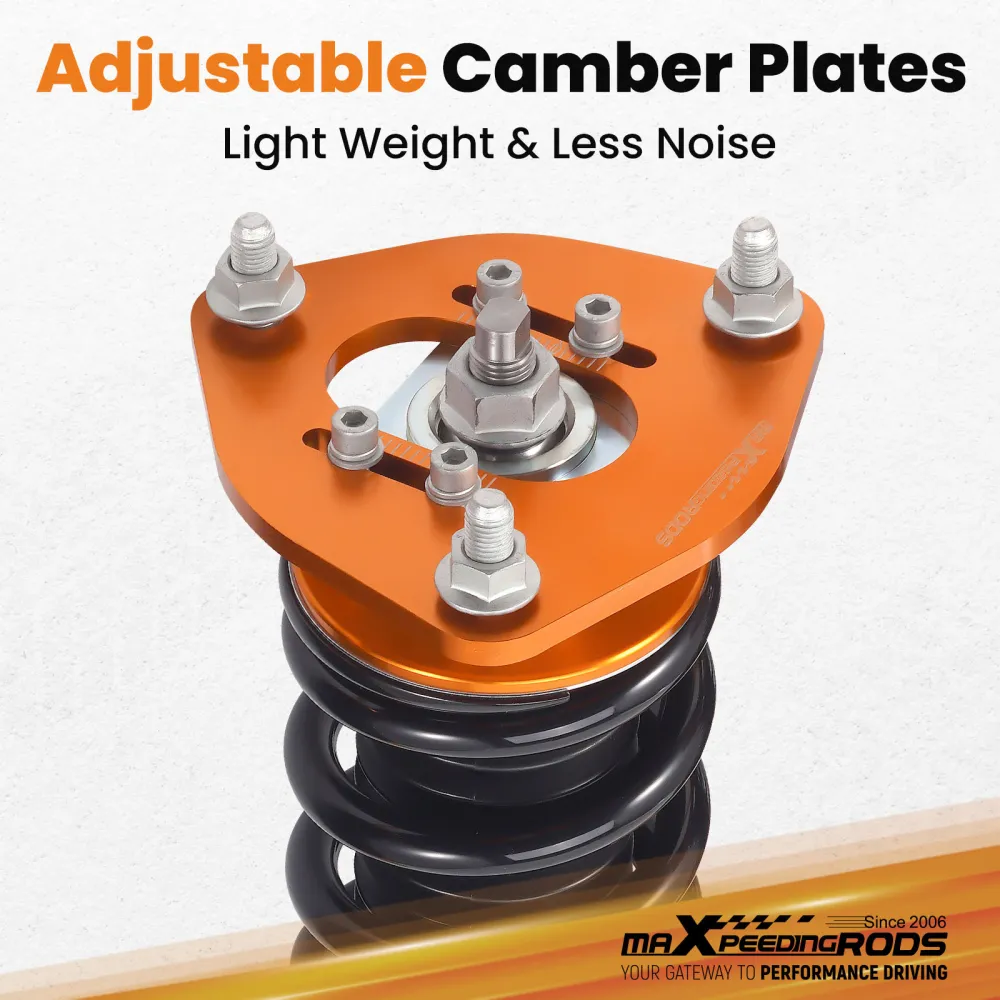

2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)
3.Pillow ball top mount – It improves the steering feel and response.（Front Only)
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (only rear)

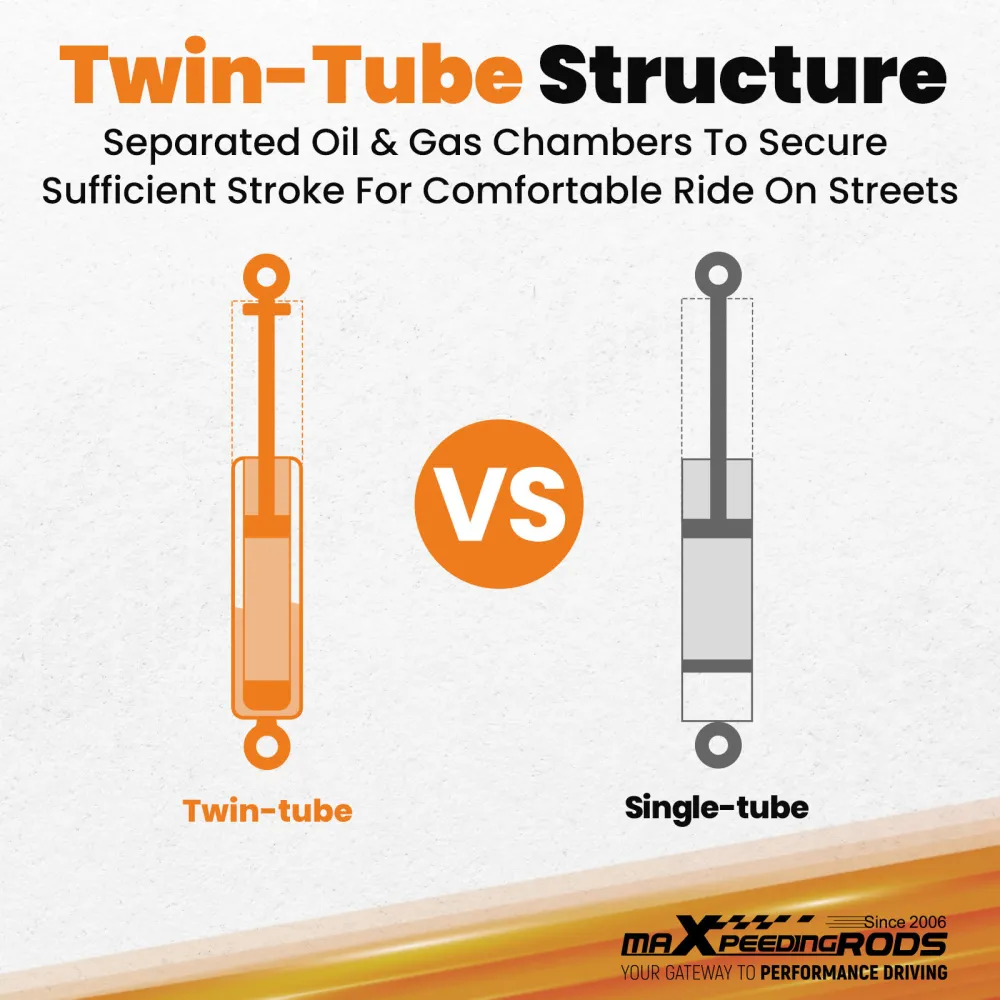

5. Twin-Tube structure allows sufficient stroke within the shock absorber.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.
9. High Tensile performance spring – STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

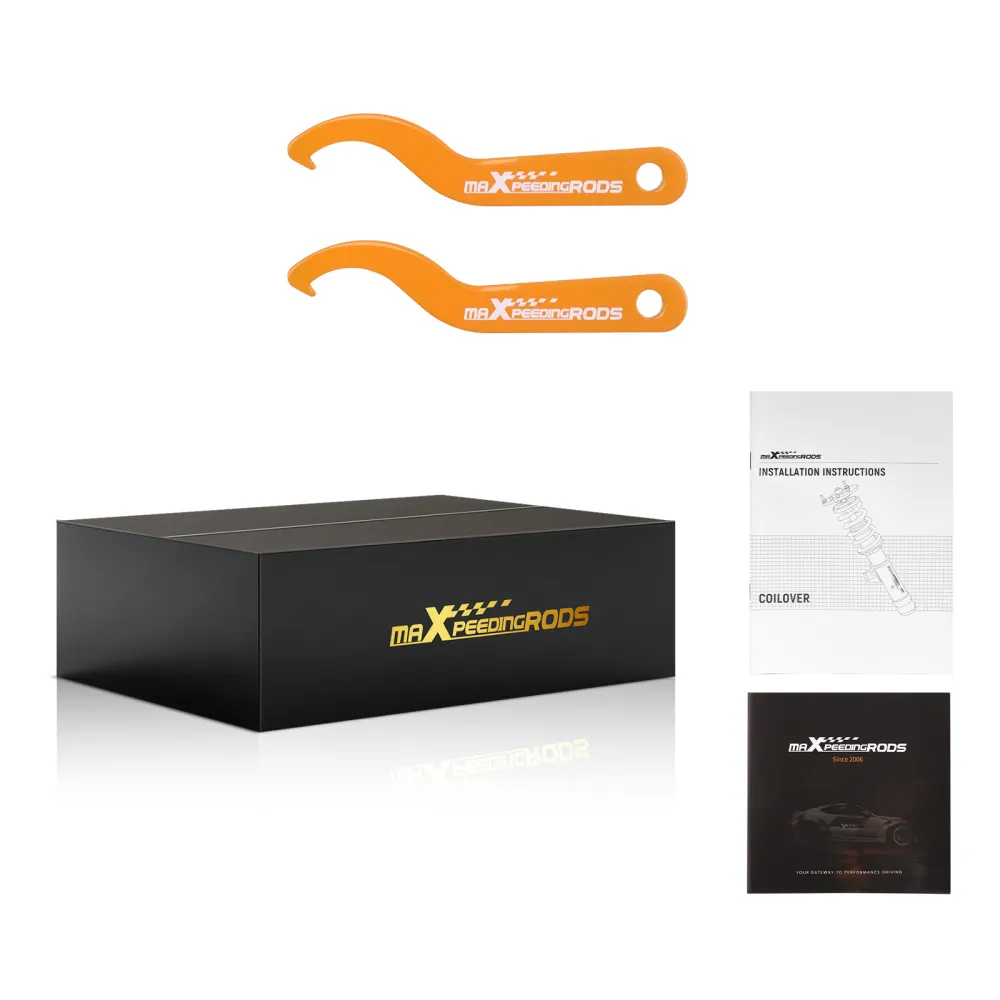

10. Height Adjustment tools included.
11. Full rebuildable.

Notice

Notice: The coilovers kit will “Lower your car” and does not keep to the original ride height.
