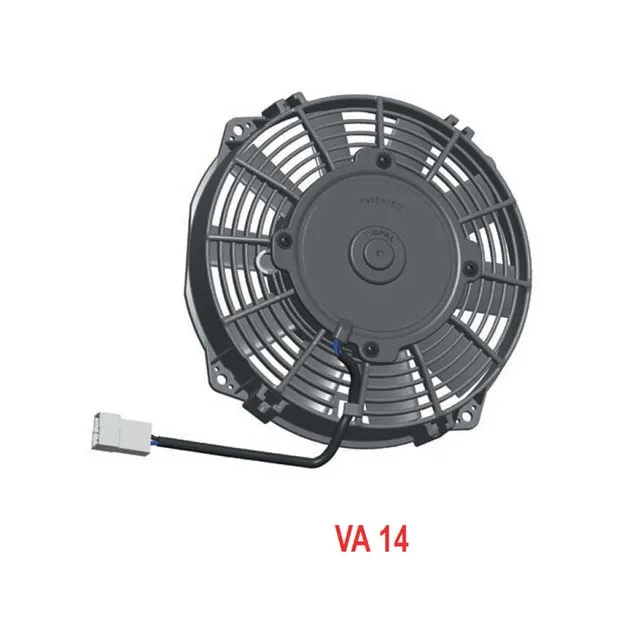

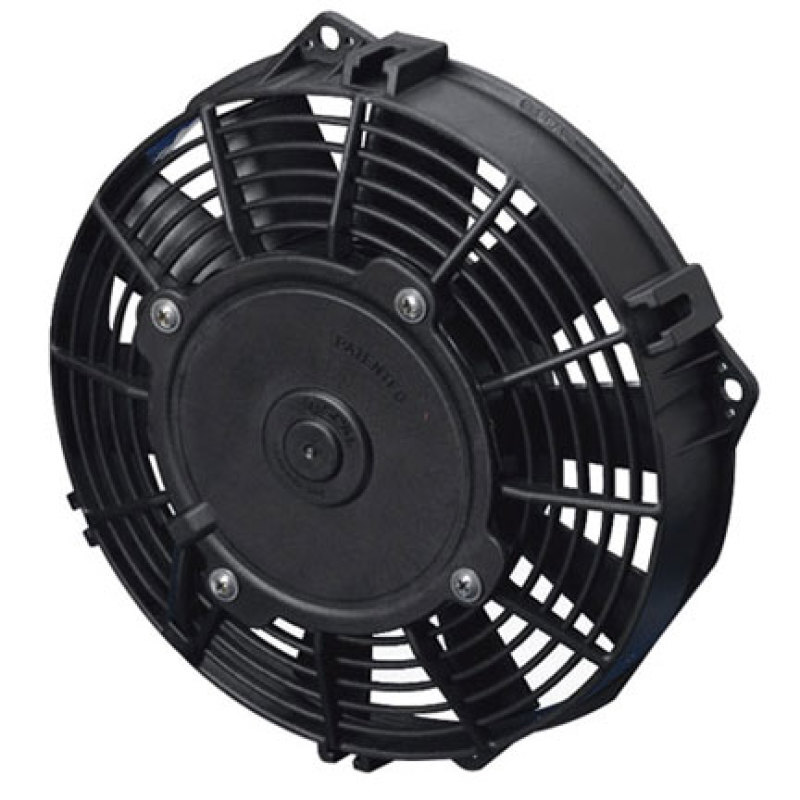

SPAL 7.5″ (190mm) Cooling Fan VA14-AP7/C-34A Universal
$ 108,00
- AED: د.إ 397
(12v / 366 cfm / Pulling)
Part No. 30100358A
Low profile straight blade suction condenser/radiator cooling fan from SPAL Automotive.
- SPAL TYPE:VA14-AP7/C-34A BT MC
- 12v
- Pulling (suction) for maximum efficency
- Depth: 52mm
- 366 CFM
- 5.3A current draw
- Metal Casing for additional ruggedness
- Standard Connector with wire harness is included.
Technical Information
Part / Product Specification and Notes
Maximum Airflow (at zero Static Pressure) | 366CFM (620mยณ/h) |
Fan Blade ร | 190mm (7.5″) |
Standard Features | Waterproof motor, IP 68 |
Long life | |
36 Months Guarantee | |
Operating Voltage | 12v (tested at:13v) |
IP Rating | IP68 |

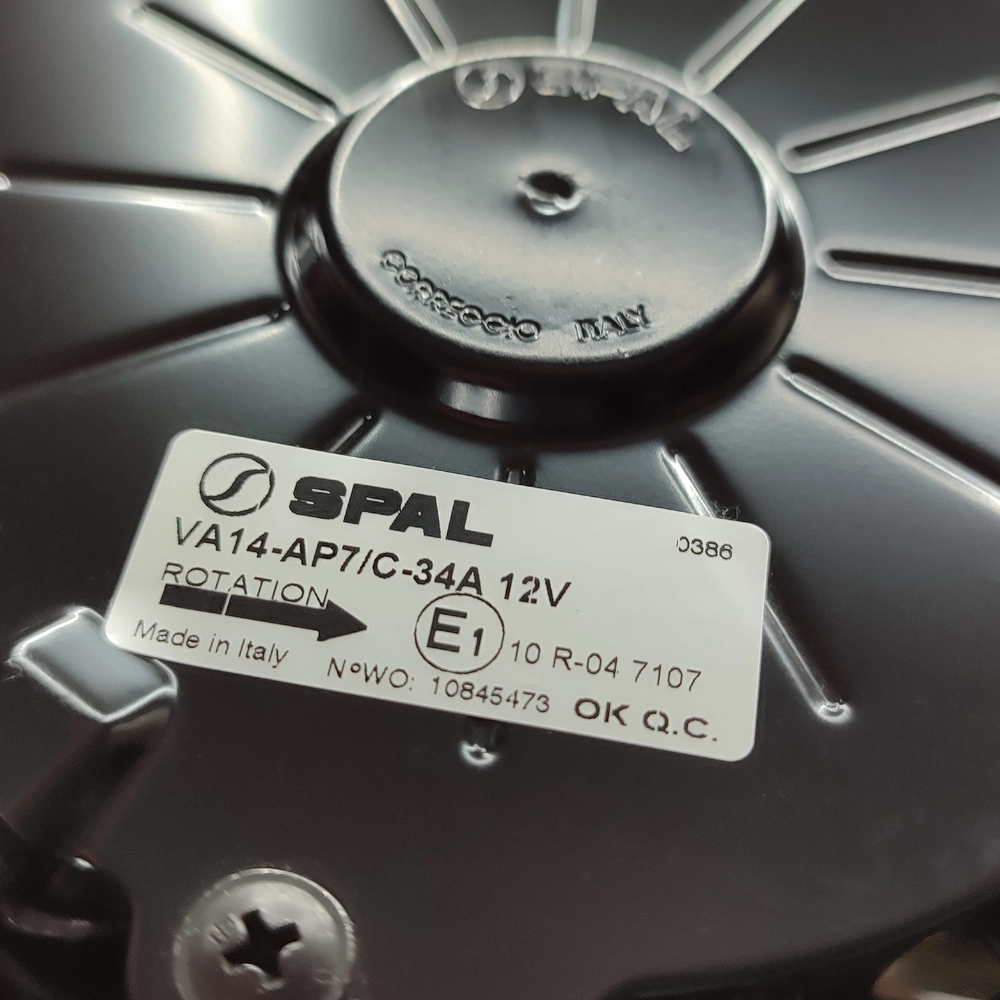

SPAL Type/Description | VA14-AP7/C-34A BT MC |
BT: Standard Connector | |
/C: C Class 5000hr motor | |
MC: Metal Cover | |
Airflow Direction | Suction |
Mounting Bolt/Screw | M5 bolt |
Mounting Torque | 3(+1/-0) Nm |
Certifications | UNI EN ISO 9001:2008 |
ISO TS 16949 | |
ISO 14001 |
