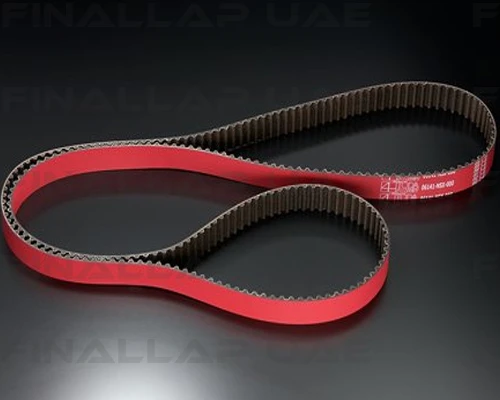

Toda Racing High Power Timing Belt – NSX NA1 C30A NA2 C32B

Brand: Toda Racing
Product: High Power Timing Belt – NSX NA1 C30A NA2 C32B
Part Num: 06141-NSX-R00 (OLD: 06141-NSX-000)

SPECIFICATIONS:
OEM Part Number: 06141-PR7-305
Belt Size: 241RU28
Belt Structure:
– Rubber: Aramid Fiber + Nylon Fiber
– Core Wire: High strength H-NBR (High Saturation)
– Tooth Cloth: A Special small diameter glass cord for high strength

Toda high power timing belt (vs. standard belt)
Resistance to cutting : approx. 3.5 ~ 4 times
Heat resistance : approx. 2.5 ~ 3 times
Tooth integrity : approx. 3.0 ~ 4 times
Resistance to abrasion : approx. 2.5 ~ 3 times

FEATURES:
With using up-rated valve springs and high lift cams as well as being driven under more arduous sports driving conditions the additional stress placed on the original OEM cam belt are considerable. These additional stresses lead to among other things increased stretch degradation resulting in inaccurate valve timing as well as reduced durability.
Toda High Power Timing Belts are designed from high quality materials to give improved durability as well as reduced stretch degradation.
