Toyota Supra JZA70 MA70 GA70 86-92 Coilover Maxspeedrods

Introduction

Maxpeedingrods-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

Compatible for TOYOTA　Compatible for SUPRA　1986.01-1990.08　JPN　MA70　GT TURBO, GT TWIN TURBO S
compatible for TOYOTA　Compatible for SUPRA　1986.01-1993.04　JPN　GA70　G, GT, GT TWIN TURBO
compatible for TOYOTA　Compatible for SUPRA　1987-1992　USA　MA70L
compatible for TOYOTA　Compatible for SUPRA　1990.08-1993.04　JPN JZA70　GT, TWIN TURBO, TWIN TURBO R
compatible for TOYOTA　SOARER　1986.01-1991.05　JPN　GZ20　GT TWIN TURBO, TWIN TURBO L, 2.0VX
compatible for TOYOTA　SOARER　1986.01-1991.05　JPN　MZ20　GT, GT LIMITED

Specification

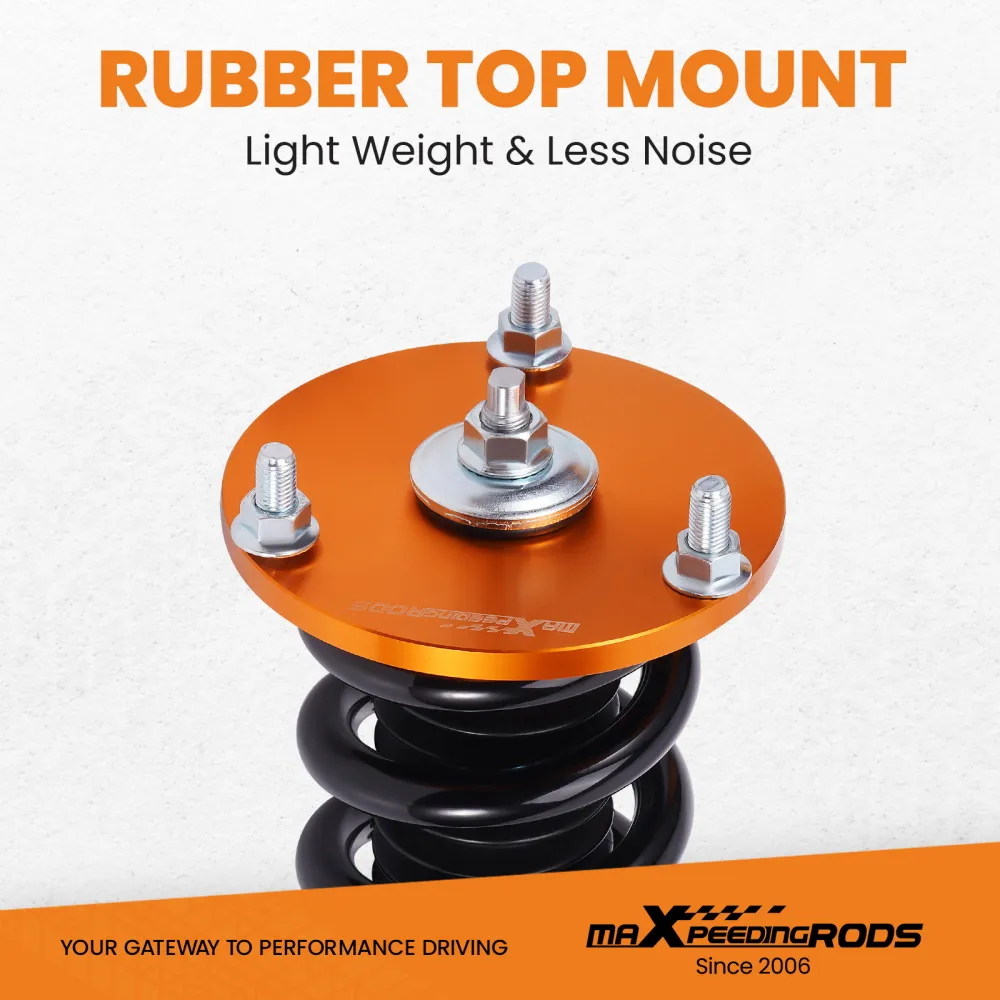

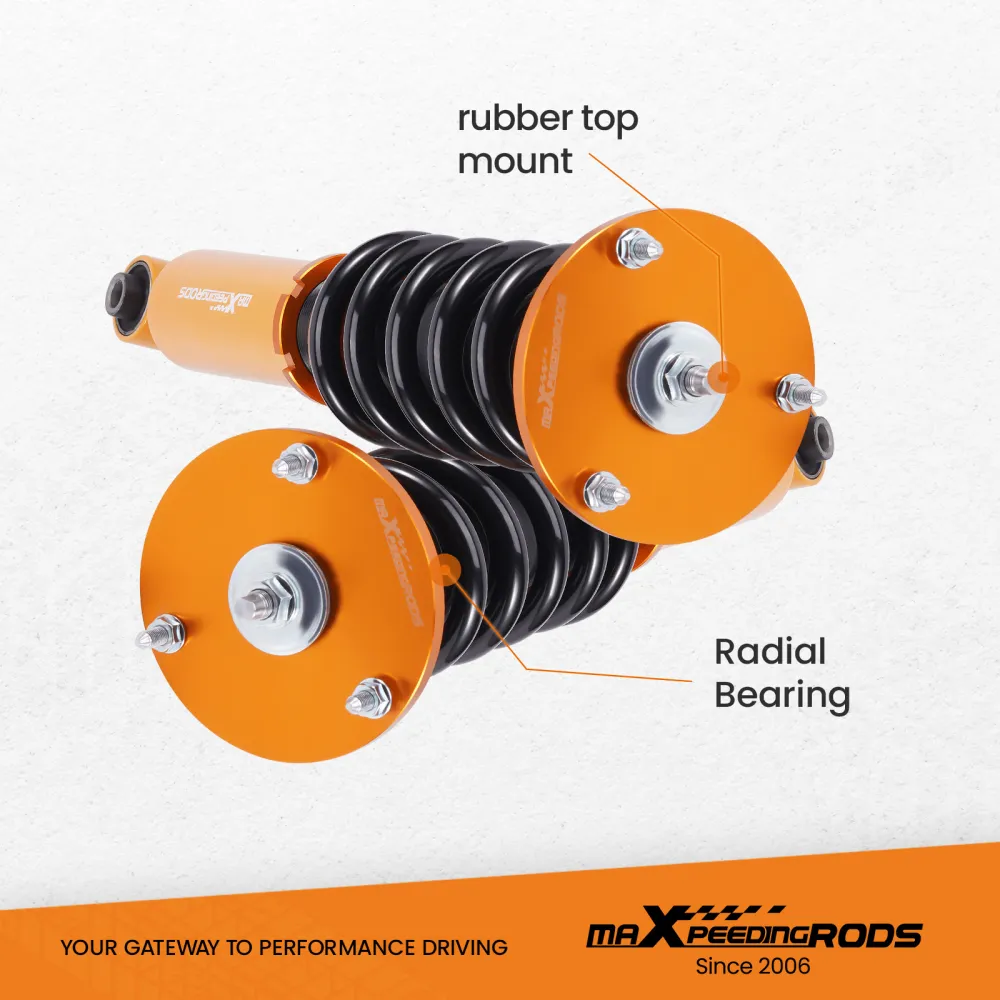

Front and Rear top mount: Standard rubber
Damping adjustable: Not available
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 14 kg/mm (784 lbs/in)
Spring Rate Rear: 12 kg/mm (672 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 230 mm
Spring length Rear: 230 mm
Spring Preload advised: 7-10 mm
Color: Golden body with black spring

Package included

Package included：

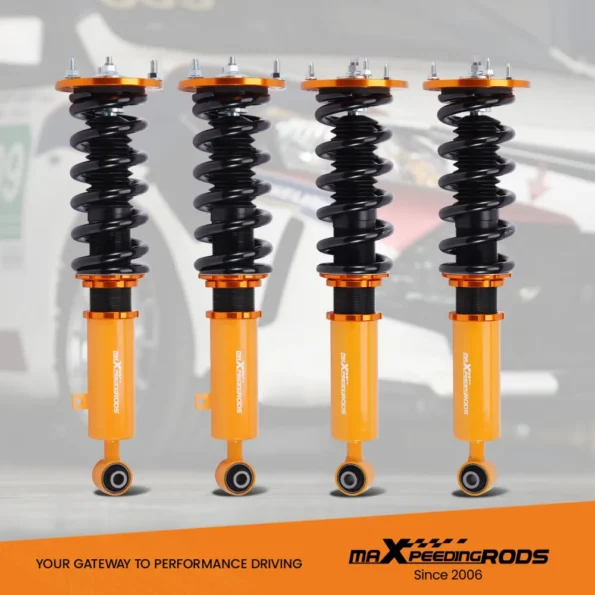

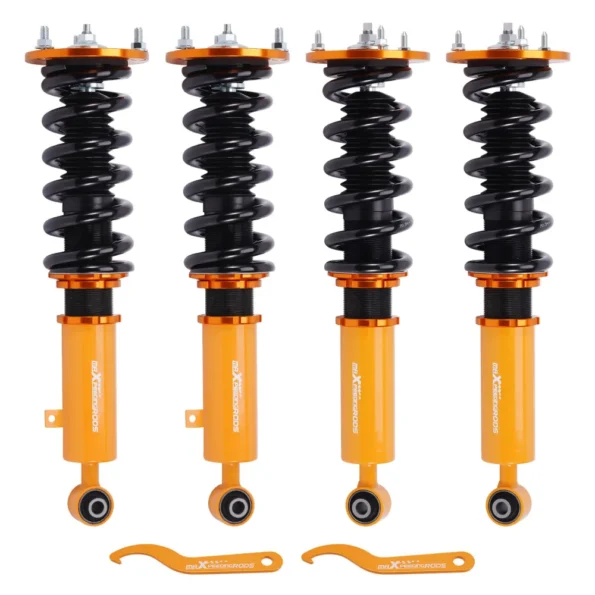

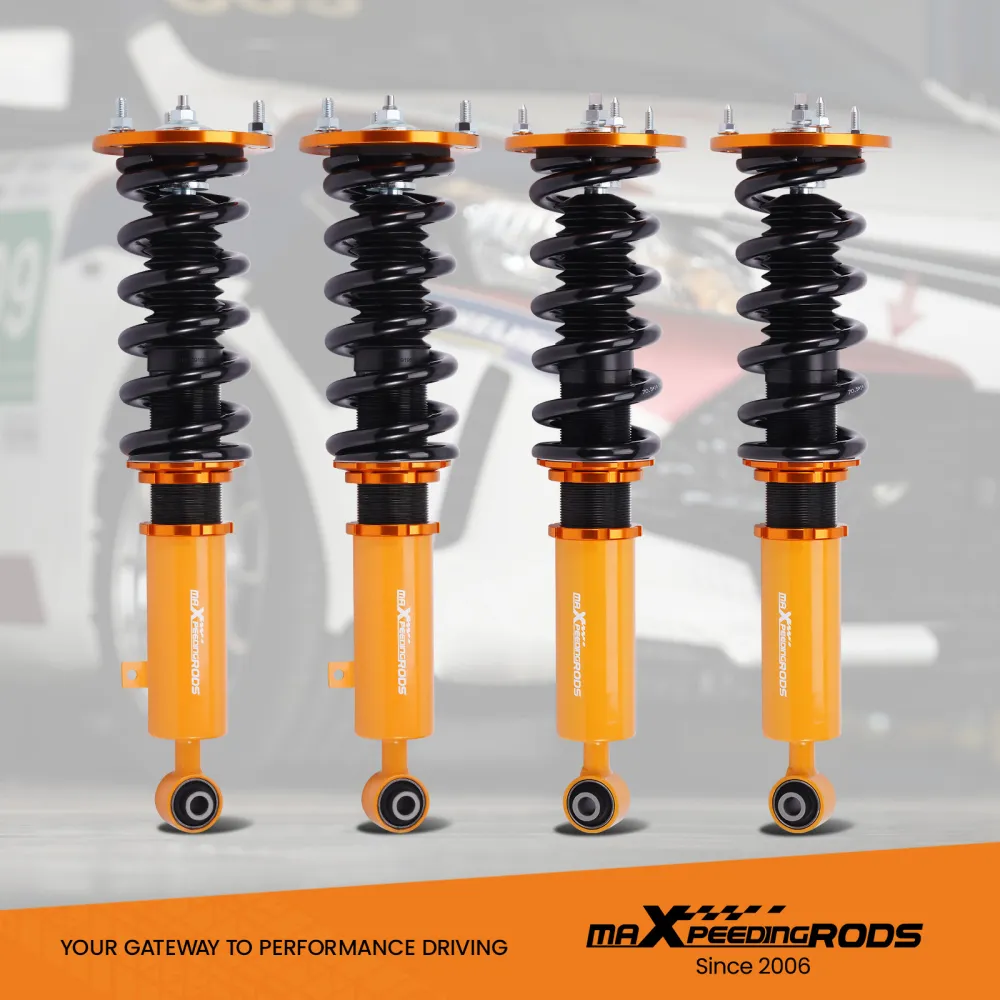

2 x Front coil-overs
2 x Rear coil-overs
2 x C spanners

Dimension

Package dimension: 71*51*21cm
Package weight: 25820 g

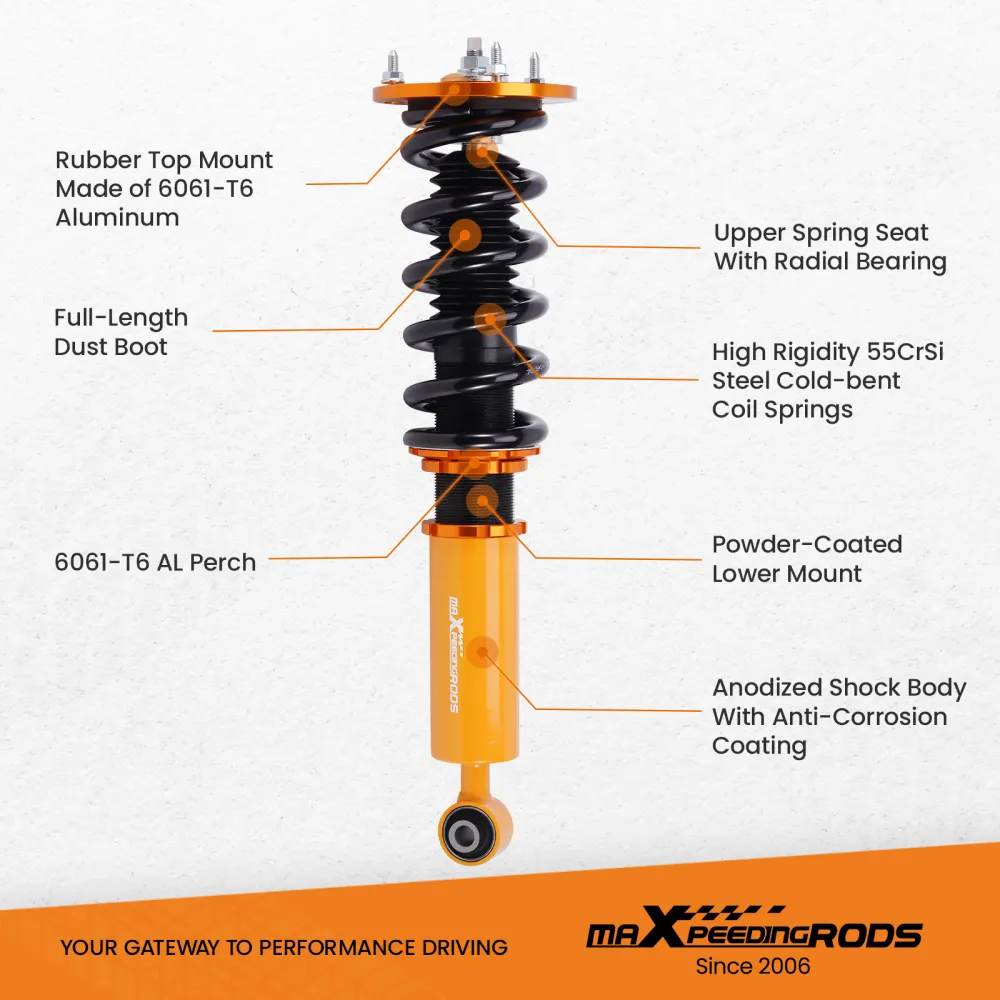

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

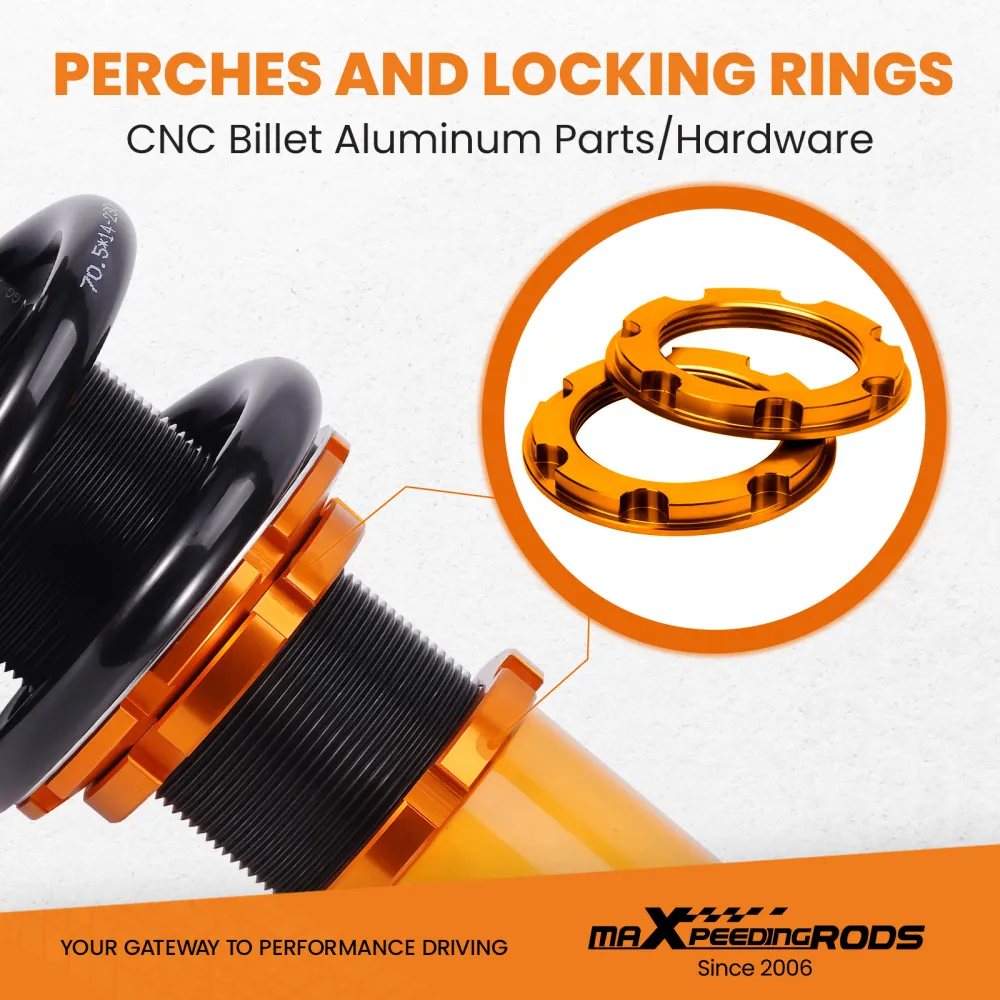

4. CNC machined Aluminum top mounts and lockers– – excellent strength, and save weight

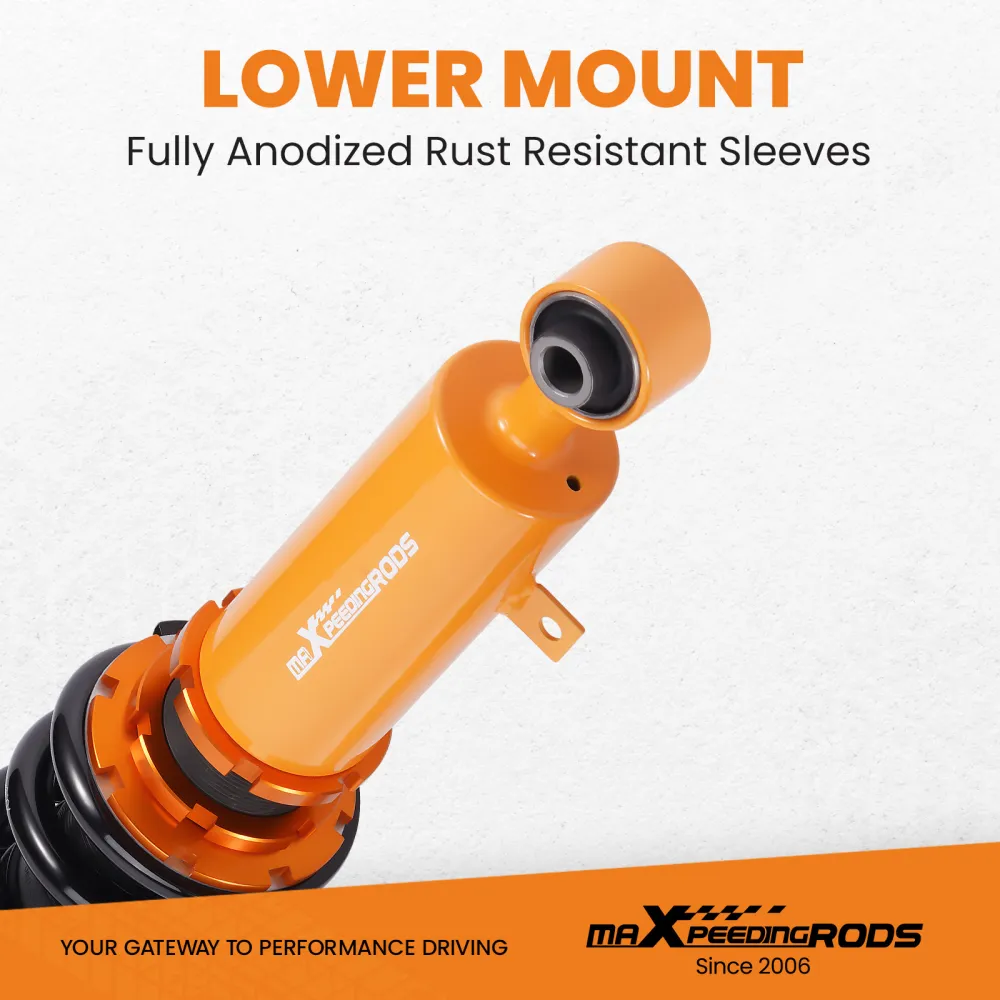

5. Heavy Duty Steel Lower Mounts— Highly Durable & Reliable
6. High tensile spring— 600,000 times continuously test to assure its high tensile strength.

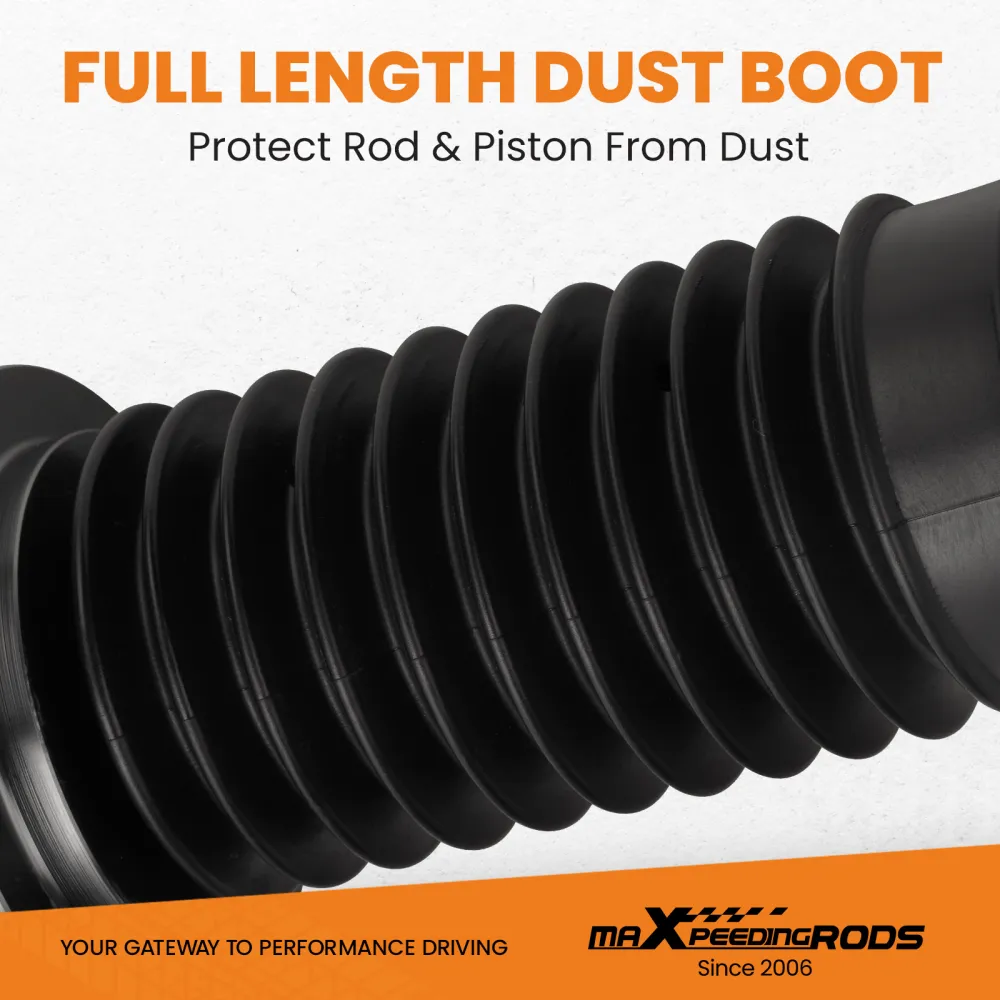

7. All inserts come with fitted long rubber boots— To protect the damper better and be durable.
8. Twin-Tube structure —provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish – Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
