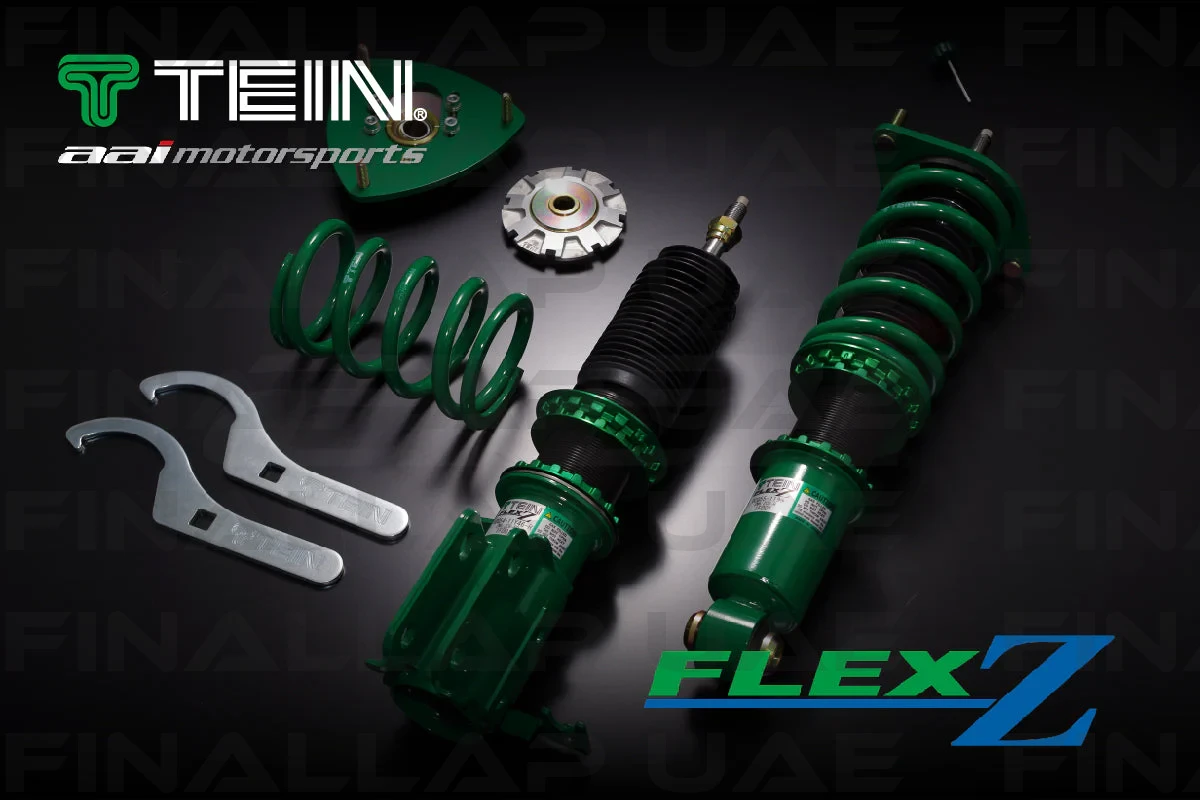

TEIN Flex Z Coilover Suspension – NSX NA1 NA2

Brand: TEIN
Product: Flex Z Coilover Suspension – NSX NA1 NA2
Part Num: VSH14-C1SS3

SPECIFICATIONS:
Series: Flex Z
Mounts:
– Front: Stiff Rubber Upper Mounts
– Rear: Stiff Rubber Upper Mounts
Springs Specifications:
Spring Rate:
– Front: 10.0K (175mm)
– Rear: 12.0K (175mm)

Stock Height Difference (mm):
– Front: -50
– Rear: -30

Max Adjustability (mm):
– Front: -101 ~ +4
– Rear: -97 ~ -2

Recommended Adjustability (mm):
– Front: -60 ~ -40
– Rear: -40 ~ -20

FEATURES:
– Steel Construction
– Twin Tube Internal Construction
– Full-Length Adjustable via Threaded Body and Spring Seat/Seat Locks
– 16-Way Damping Adjustable (simultaneous compression and rebound)
– New Damper Valving Specifications for Improved Street Comfort
– Incorporated Advance Needle Design (nearly 200% improvement over predecessor)
– Larger Piston Diameter (22mm O.D.) for Strut Type
– EDFC (Electronic Damping Force Controller)/EDFC Active Compatible
– Powdercoated Brackets and ZT Coated Shellcase for Outstanding Rust Prevention
– One Year Warranty Against Manufacturer’s Defects
