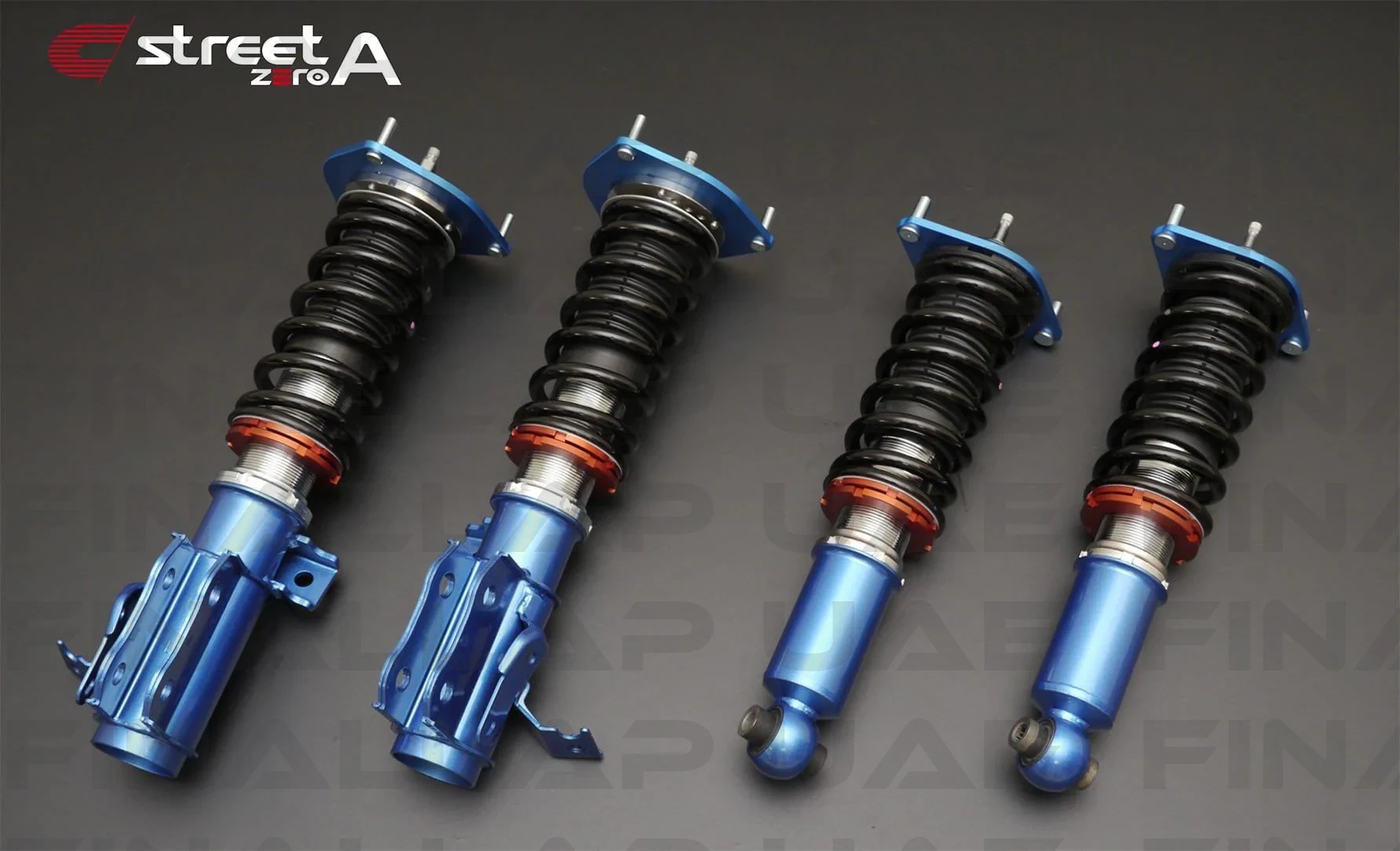

CUSCO Street ZERO A Coilover Suspension Kit – Impreza GRB GRF GVB GVF

Product: Street ZERO A Coilover Suspension Kit – 692 61N CN (692-61N-CN)
Part Number: 692 61N CN (692-61N-CN)

SPECIFICATIONS:
Series: Street ZERO A
Spring rate (kgf/mm):
– Front: 7
– Rear: 6
Damping force adjustment:
– Front: 40 Stages
– Rear: 40 Stages
Upper Mount:
– Front: Adjustable Pillow Ball Upper Mount
– Rear: Non-Adjustable HD Rubber Upper Mount
Spring ID / Free Height (mm):
– Front: 65 / 200
– Rear: 65 / 200
Ride Height Adjustment:
– Front: Full Length Adjustment
– Rear: Full Length Adjustment

PRODUCT NOTES:
– Subaru Impreza GRB / GRF 10/2007 ~ 08/2014:
-Recommended Adjustment Range (mm) GRB:
– Front: -50 ~ -20
– Rear: -40 ~ -15
Default Ride Height Settings (mm):
– Front: -35
– Rear: -30
Maximum Adjustment Range (mm):
– Front: -62 ~ 0
– Rear: -51 ~ 0
– Subaru Impreza GVB / GVF 07/2010 ~ 08/2014:
-Recommended Adjustment Range (mm) GVB:
– Front: -50 ~ -20
– Rear: -45 ~ -20
Default Ride Height Settings (mm):
– Front: -35
– Rear: -35
Maximum Adjustment Range (mm):
– Front: -62 ~ 0
– Rear: -56 ~ -5

COMPATIBILITY NOTES:
– Impreza GRB / GRF 10/2007~08/2014: Can be used in conjunction with optional e-con2, sold separately (Part Number: 00B 60J 1014)
– Impreza GVB / GVF 07/2010~08/2014: Can be used in conjunction with optional e-con2, sold separately (Part Number: 00B 60J 1014)
